The Lüdecke Multi-Coupling System
The LÜDECKE multi-coupling system allows you to connect several temperature regulation circuits in one step.
Especially when equipping machines, this provides huge advantages:
Now, these tasks can be carried out quickly, easily and accurately. There are no more risks of mixing up important lines.
Thanks to its modular design, every multi-coupling can be put together and configured individually and thus is perfectly tailored to any requirement and application.
Advantages
- Quick & simultaneous connection of several temperature regulation lines
- Increased safety and efficiency: no risk of mixing up connections/hoses
- Reduced equipping time
- Easy operation
- Robust, high-quality, leakage-proof and durable
- Huge flexibility due to modular design
- Different plug profiles, materials and connection types
Construction & Assembly

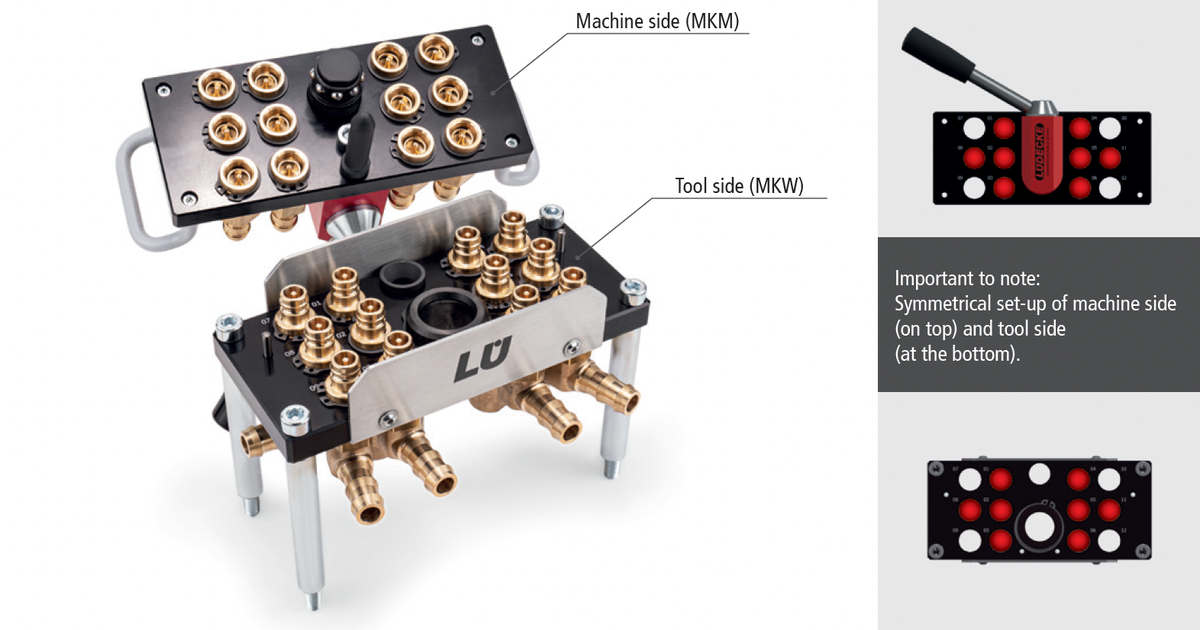

The multi-coupling system is made up of two parts: the machine side (MKM) with a pre-installed lever system as well as the tool side (MKW).
The holes on both plates are clearly numbered and help to quickly identify the circuits.
You mount the couplings on the machine side and the plugs on the tool side. Both sides can be equipped individually – however, you should pay attention that they are arranged symmetrically.
Broad range
To match the most common plug systems and to guarantee the best compatibility possible, LÜDECKE offers the multi-couplings with European, international and French plug profile as well as dripless system.
Moreover, you can choose between a version with 6, 12 or 20 connections.
The design of the versions always remains identical.
Note: It only takes a few easy steps to put together the systems shown.
Should you have any questions, do not hesitate to contact our qualified sales and technical team.
Accessories
LÜDECKE is constantly expanding its product range so that work processes can be optimised and simplified.
Parking Plate

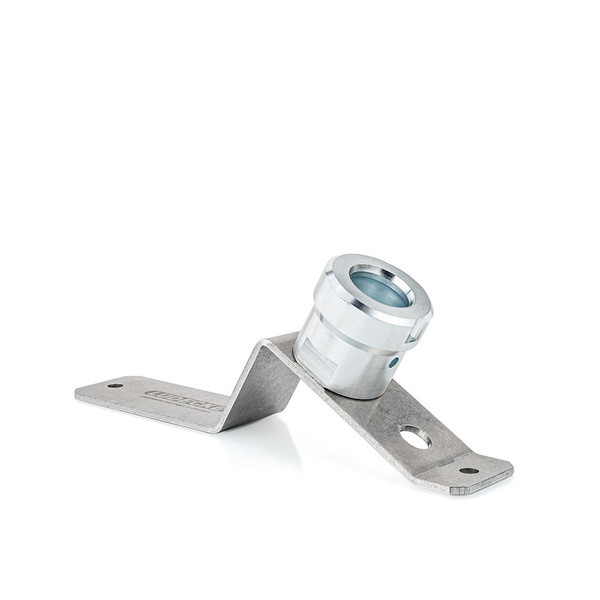

The LÜDECKE parking plate is used to set down the machine side of the multi-coupling when disconnected as well as for its temporary storage during tool change. The multi-coupling can be locked on the parking plate to avoid unintended dropping. Lockings prevent a twisting of the coupling and a drilling for the PIN ensures a proper fit.
The parking plate is also available without locking mechanism.
